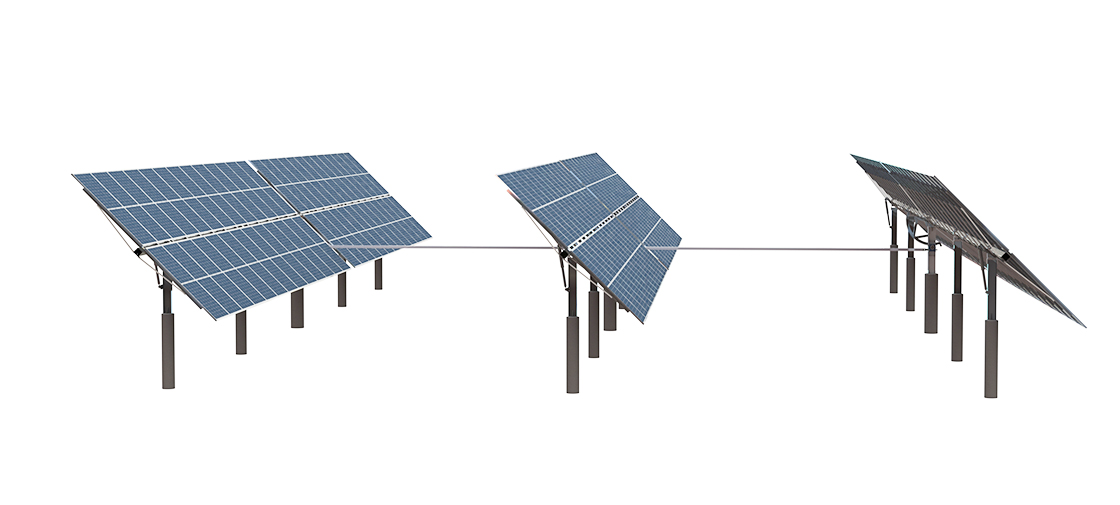

V-Link Tracking System
V-Link Tracking System adopts a multi row linkage design, with a unique linkage structure that has good slope adaptability. It has a large single installed capacity and high economic efficiency, making it an ideal product solution for large-scale agricultural and fishery photovoltaic power station projects.
Product parameters
Product features
  • Product type Muti-row linkage operation Horizontal single axis tracker
  • Driving mode Chain Wheel+Reducer (Multi-row linkage)
  • Tracking range ±60°
  • Foundation type PHC/Ramming pile/Cast-in-place pile
  • Allowable wind load 47m/s
  • Wind protection mode 18m/s
  • Module capacity 500-1000kWp
  • Ground coverageModule layout arrangement 1PC or 2PC Portrait
  • The lowest point above the ground level 0.5m(Or according to actual project requirements)
  • Ground coverage ratio（GCR） ≥30%
  • Tracking mode Astronomical Algorithms/Active tracking/Backtracking/AI
  • Tracking accuracy ≤1°
  • Control mode Siemens PLC closed-loop feedback control
  • Control accuracy ≤0.3°
  • Power supply mode Customer provided AC circuit
  • Power supply voltage 380V AC
  • Communication mode Zigbee wireless/Modbus
  • Level of protection ≥IP65
  • System consumption ~185kWh/Set/Year
  • Protected mode contition Gale/Snowfall/Hail
  • Standard and Certification 《Specifications for structural steel buildings》 AISC 360 《Minimum design loads for buildings and other structures》 ASCE 7 《CPP wind tunnel tests and wind load analysis》 UL2703/UL3703/AISC360-16/ASCE 7-22/BV Patent No.：CN210111921U
    1. Low investment and operation costs
    2. Good terrain adaptability
    3. The lowest point height is above 2.5m, and agricultural machinery/fishing boats can operate normally
    4. Low basic quantity, increasing land/water surface utilization area.
