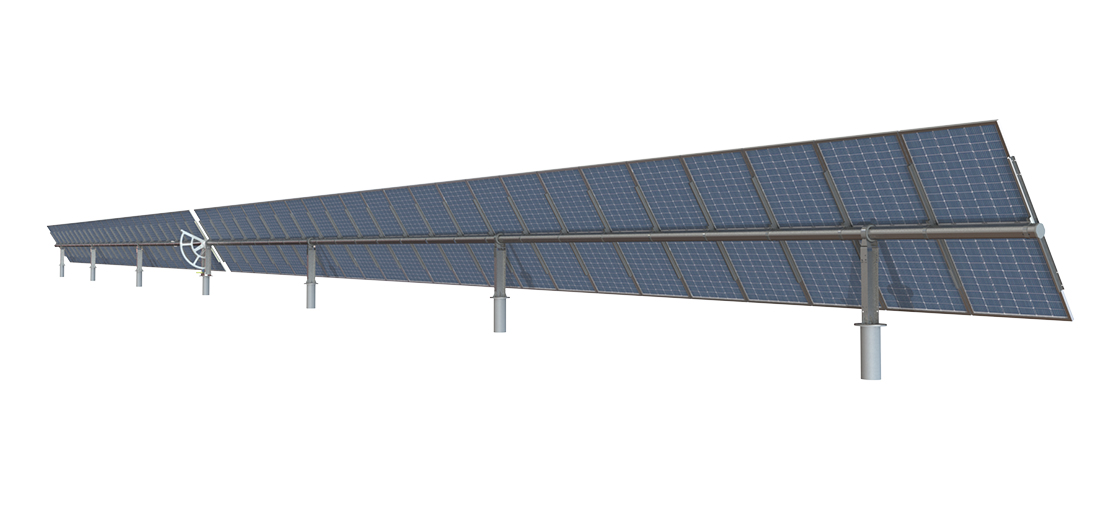

V-In Tracking System
V-In Tracking System adopts one single row independent operation design, with high-power components arranged in 1P, which has advantages such as stable structure, convenient installation, and low operation and maintenance costs; It can be flexibly arranged on irregular ground and has good slope adaptability. It is an ideal product solution for large-scale ground, agricultural and fishery photovoltaic power station projects.
Product parameters
Product features
  • Driving mode Chain Wheel+Reducer
  • Tracking range ±60°
  • Foundation type PHC/Ramming pile/Cast-in-place pile
  • Wind load 47m/s
  • Wind protection mode 18m/s
  • Module quantity ≤90PC
  • Module layout arrangement 1PC Portrait
  • The lowest point above the ground level 0.5m(Or according to actual project requirements)
  • Ground coverage ratio（GCR） ≥30%
  • Tracking mode Astronomical Algorithms/Active tracking/Backtracking/AI
  • Tracking accuracy ≤1°
  • Control mode MCU closed-loop feedback control
  • Control accuracy ≤0.3°
  • Power supply mode String connected with battery backup/PV panel with battery backup/Customer provided AC circuit
  • Power supply voltage 1500V DC/220V AC
  • Backup battery Lithium battery,≥2.5Ah
  • Level of protection ≥IP65
  • Communication mode Zigbee wireless/Modbus
  • Monitoring device SCADA(optional)
  • System consumption ~20kWh/Set/Year
  • Protected mode contition Gale/Snowfall/Hail
  • Standard and Certification 《Specifications for structural steel buildings》 AISC 360 《Minimum design loads for buildings and other structures》 ASCE 7 《CPP wind tunnel tests and wind load analysis》 UL2703/UL3703/AISC360-16/ASCE 7-22/sbp/BV Patent No.：CN113064454A
    1. The drive form of sprocket+reducer has higher transmission efficiency and environmental adaptability, and can operate without maintenance for 25 years；
    2. Single row independent operation, smooth inter row channels, convenient operation and maintenance；
    3. Good terrain adaptability, flexible layout to improve land use efficiency, and reduce investment costs；
    4. Equipped with wireless communication device, communication is sensitive and reliable.
